Design ateljé Lyktan
Blaze is a newly developed line of recessed LED spotlights with a high colour rendering index and performance, serving as an ideal replacement for energy intensive lighting.
Blaze basically consists of a light engine in combination with a luminaire housing forming the complete luminaire. The light engine is available in three different beam angles and colour temperatures, and nine types of luminaire housing, providing lighting possibilities in all kinds of environments.
All light engines can be combined with a choice of luminaire housing, giving optimal lighting and freedom in design possibilities.

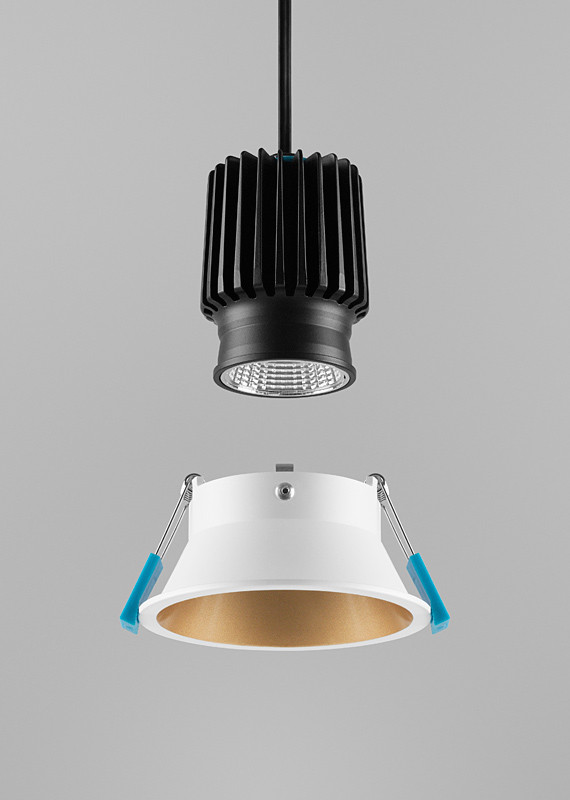

Light engine and luminaire housing. The luminaire housing is easily assembled and requires no tools.

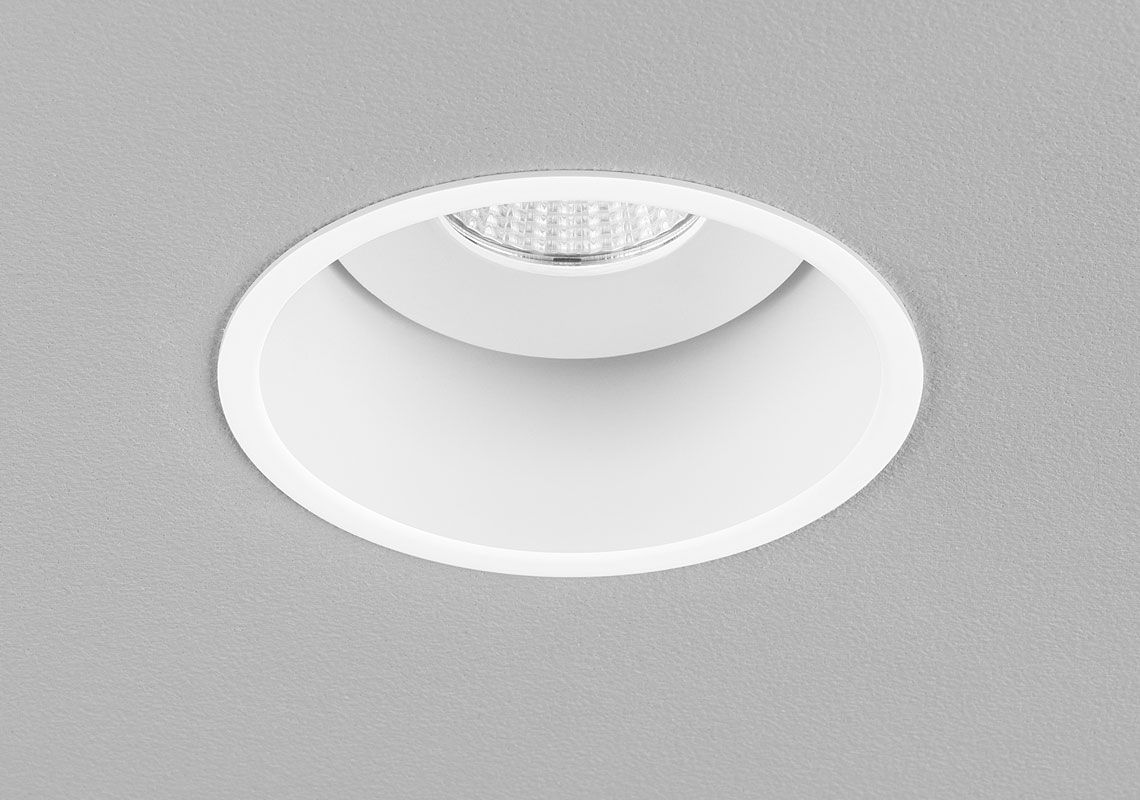

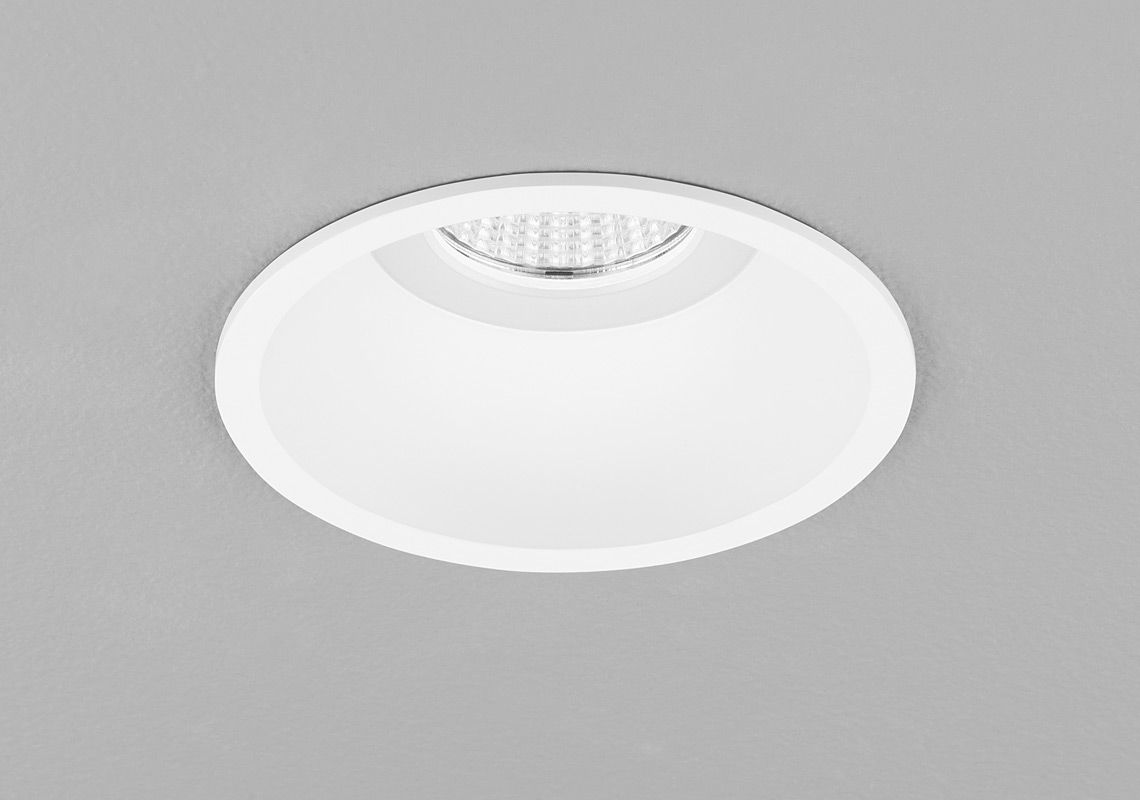

Blaze Deep / Deep IP 44. (ØxD) 102x47 mm / 101x47 mm. Height incl. light engine 113 mm / 111 mm.
Adjustable Deep. (ØxD) 90x60 mm. Height incl. light engine 122 mm.
Deep Gold. (ØxD) 102x47 mm. Height incl. light engine 111 mm.

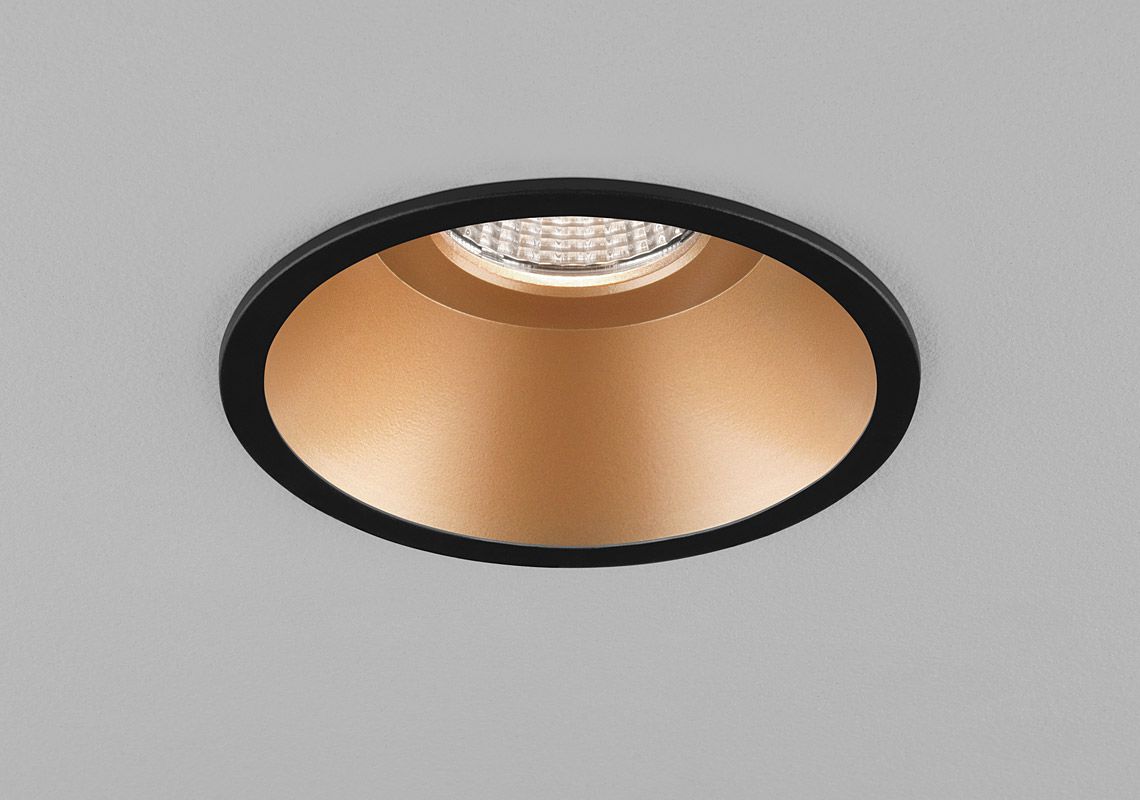

Deep Black Gold. (ØxD) 102x47 mm. Height incl. light engine 111 mm.
Adjustable Large. (ØxD) 105x36 mm. Height incl. light engine 102 mm.

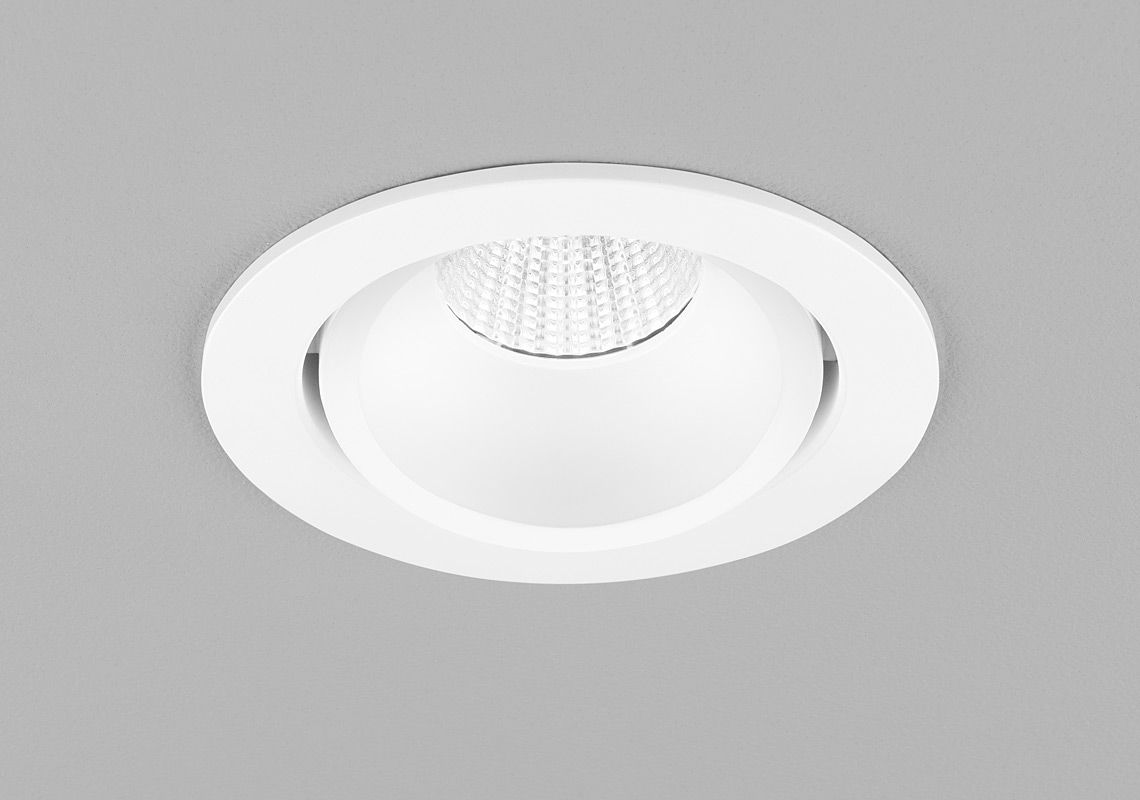

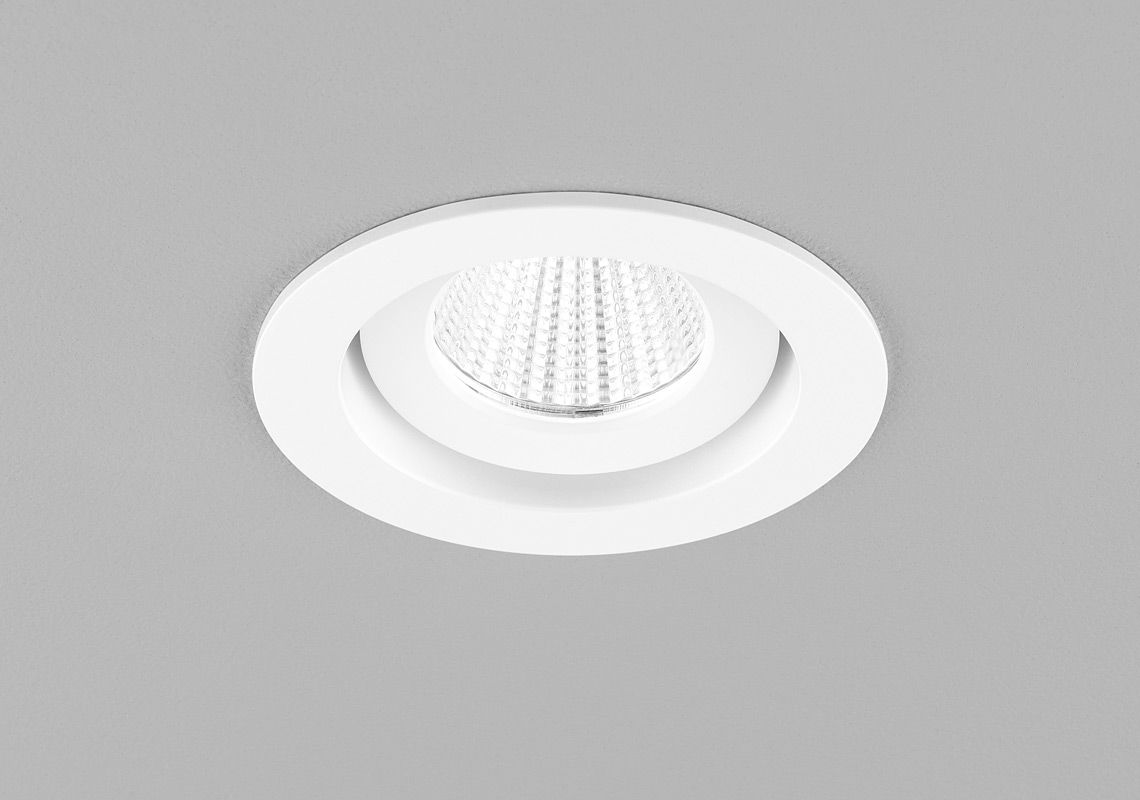

Adjustable. (ØxD) 90x33 mm. Height incl. light engine 88 mm.

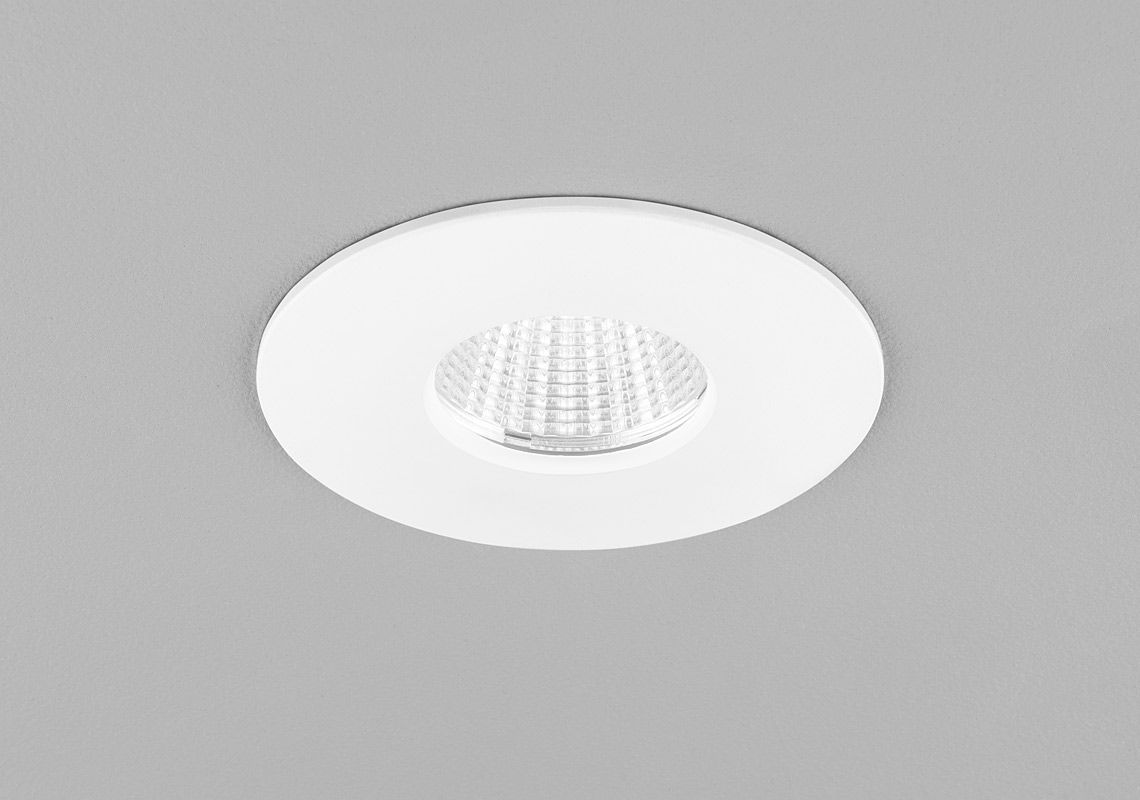

IP44. (ØxD) 90x22 mm. Height incl. light engine 83 mm.

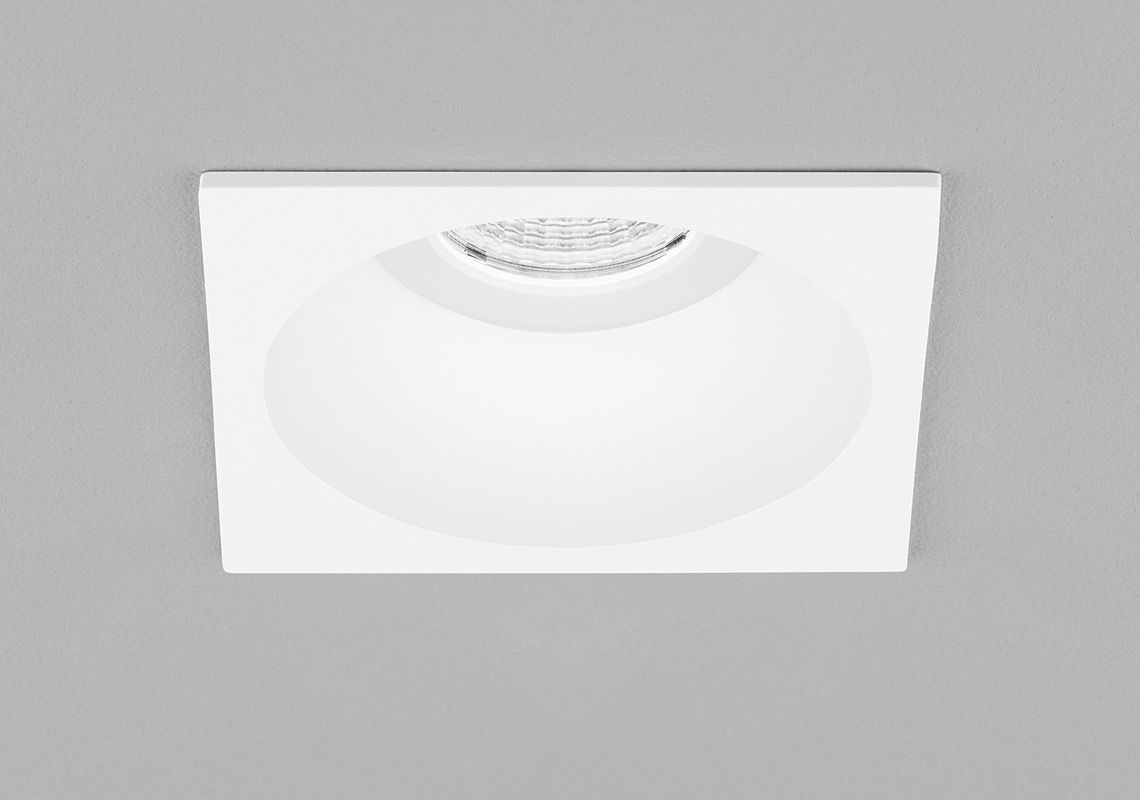

Square. (ØxD) 100x50 mm. Height incl. light engine 111 mm.

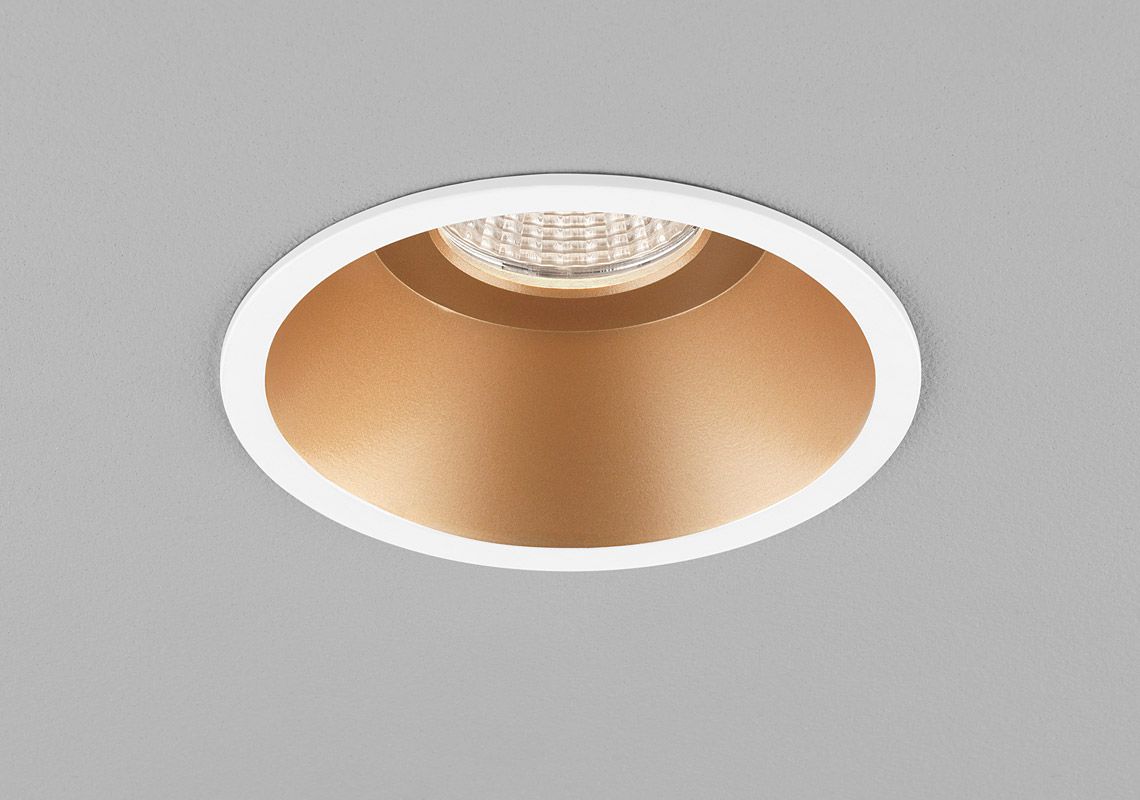

Blaze Deep Gold.
(HxW) 81x50 mm.
(HxW) 22-60 x 83-122 mm.
Luminaire height incl. light engine 83-122 mm. Hole dimensions Ø 70-90 mm. Max ceiling thickness 25 mm.
Light engine in die-cast anodised aluminium. Reflectors in spun aluminum. Luminaire housing in painted spun aluminium.
20°, 38°, 55°.
Colour rendering: CRI>97. Chromaticity tolerance: Max 3 SDCM. Life span: L90B10 50 000h. Luminous efficacy: 1000 lm. Colour temperature: 2700K, 3000K and 4000K.
Mounting of Blaze takes place during the installation where the light engine in combination with luminaire housing and driver represent the complete luminaire.
The light engine comes with a 2 metre cable and fast connector for easy connection to the driver. The connector cable to the primary winding can be ordered separately, with optional fast connector or separate connector. DALI, DSI, SwitchDIM, CorridorFUNCTION and Phase-cut. Please note that the luminaire is only sold together with the recommended driver from Tridonic, otherwise the warrantee is not valid. Up to three luminaires can be connected in parallel to the driver.
